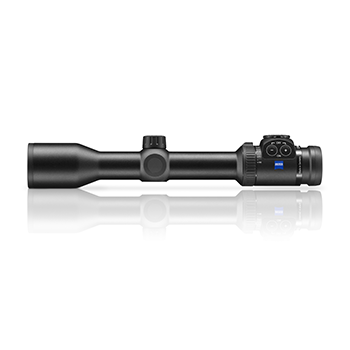

ZEISS Conquest DL 2-8×42 ASV

Magnification

2 x

8 x

Effective Lens Diameter

32.5 mm

42 mm

Exit Pupil Diameter

16.3 mm

5.3 mm

Twilight Factors

5.7

18.3

Field of View at 100m

15.9 m

4.8 m

Subjective Viewing Angle

9.1 °

2.8 °

Diopter Adjustment Range

+2 | -3 dpt

Eye Relief

90 mm

Parallax-Free

100 m

Adjustment Square at 100m

160 cm

Adjustment per Click at 100m

1 cm

Centre Tube Diameter

30 mm

Eye Piece Tube Diameter

42 mm

Objective Tube Diameter

48 mm

LotuTec®

Yes

Nitrogen Filling

yes

Water Resistance

400 mbar

Functional Temperature in °C

-25 | +50 °C

Length

302 mm

Weight without Illuminated Reticle

Without Inner Rail

–

With Inner Rail

–

Weight with Illuminated Reticle

Without Inner Rail

520 g

With Inner Rail

–

Order numbers without Illuminated Reticle

Without Inner Rail

–

With Inner Rail

–

Order numbers with Illuminated Reticle

Without Inner Rail

525445

With Inner Rail

–

Order numbers with Illumination Control

With Inner Rail

–
